Real Estate Development

Castle Clinton, Battery Park

New York, New York

Project Overview

Located at the southern tip of Manhattan Island, Castle Clinton, originally a fortification, has over the years been a port of entry for immigrants, a theater, and an aquarium. Now a historic landmark, the historic building is visited by sightseers daily. MFS provided professional Land Surveying services to John G. Waite Associates in support of restoration to the building, located in Battery Park.

IMG 2672
IMG 2709
IMG 2698
New York, New York

Project Details

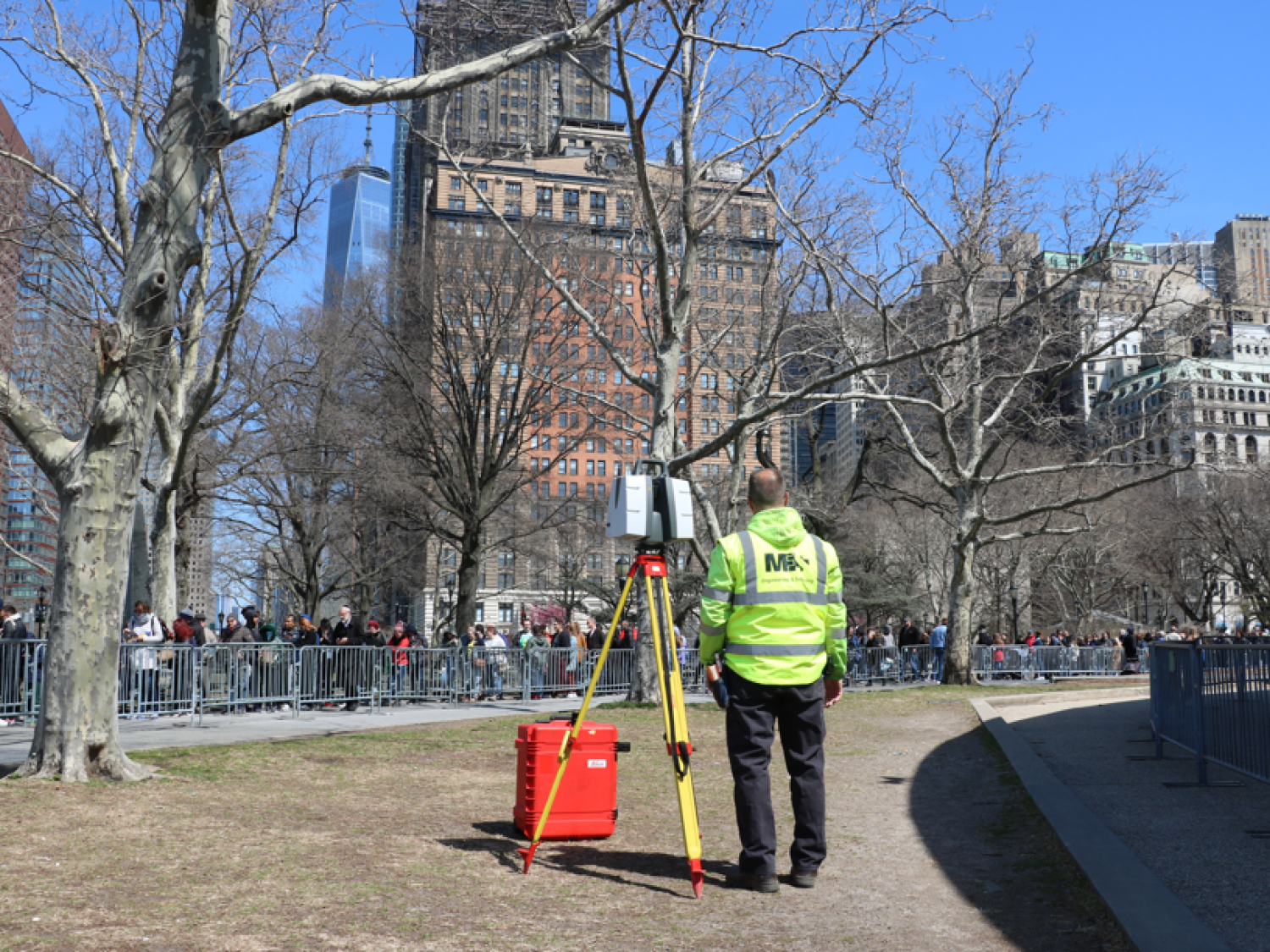

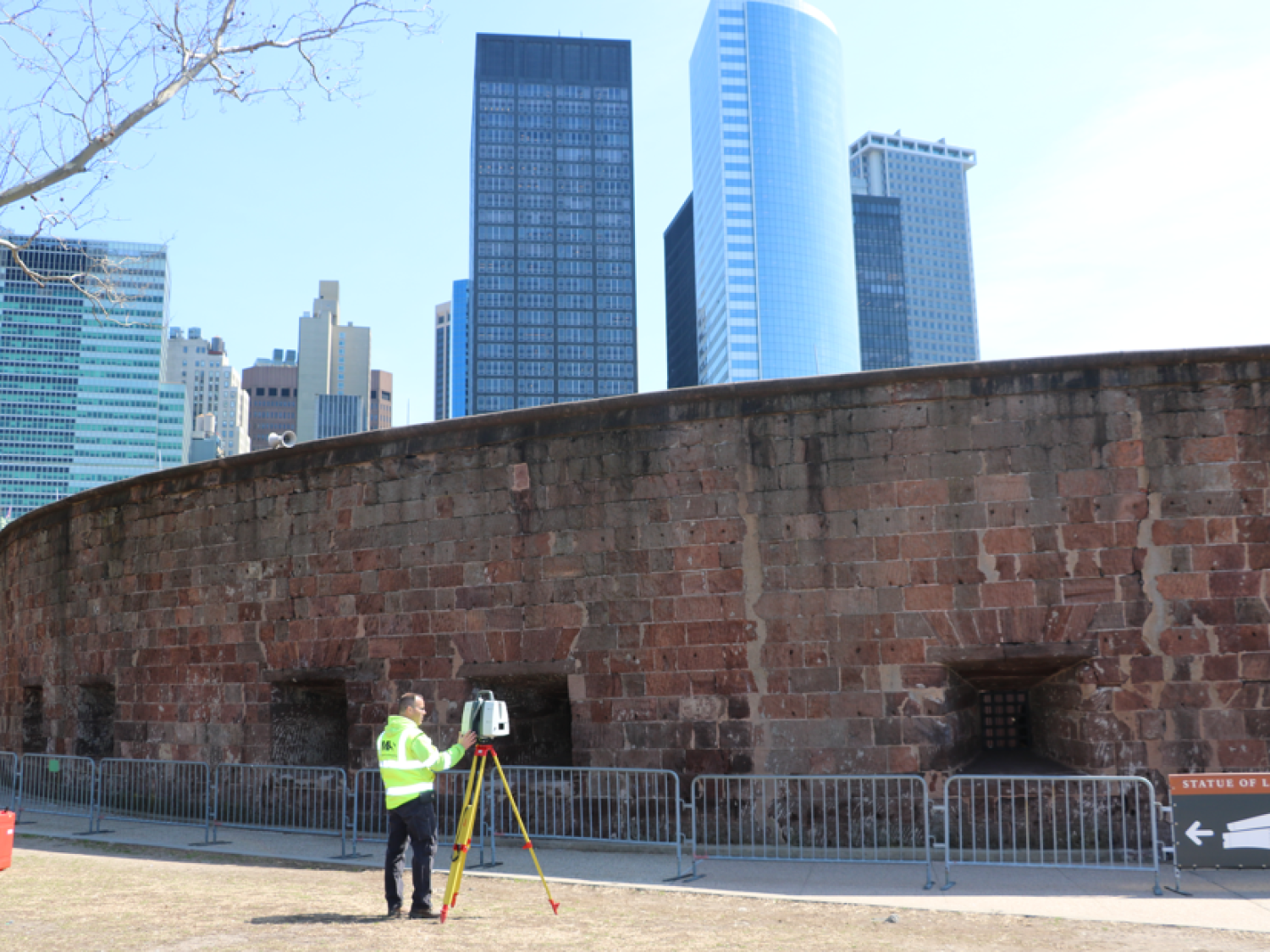

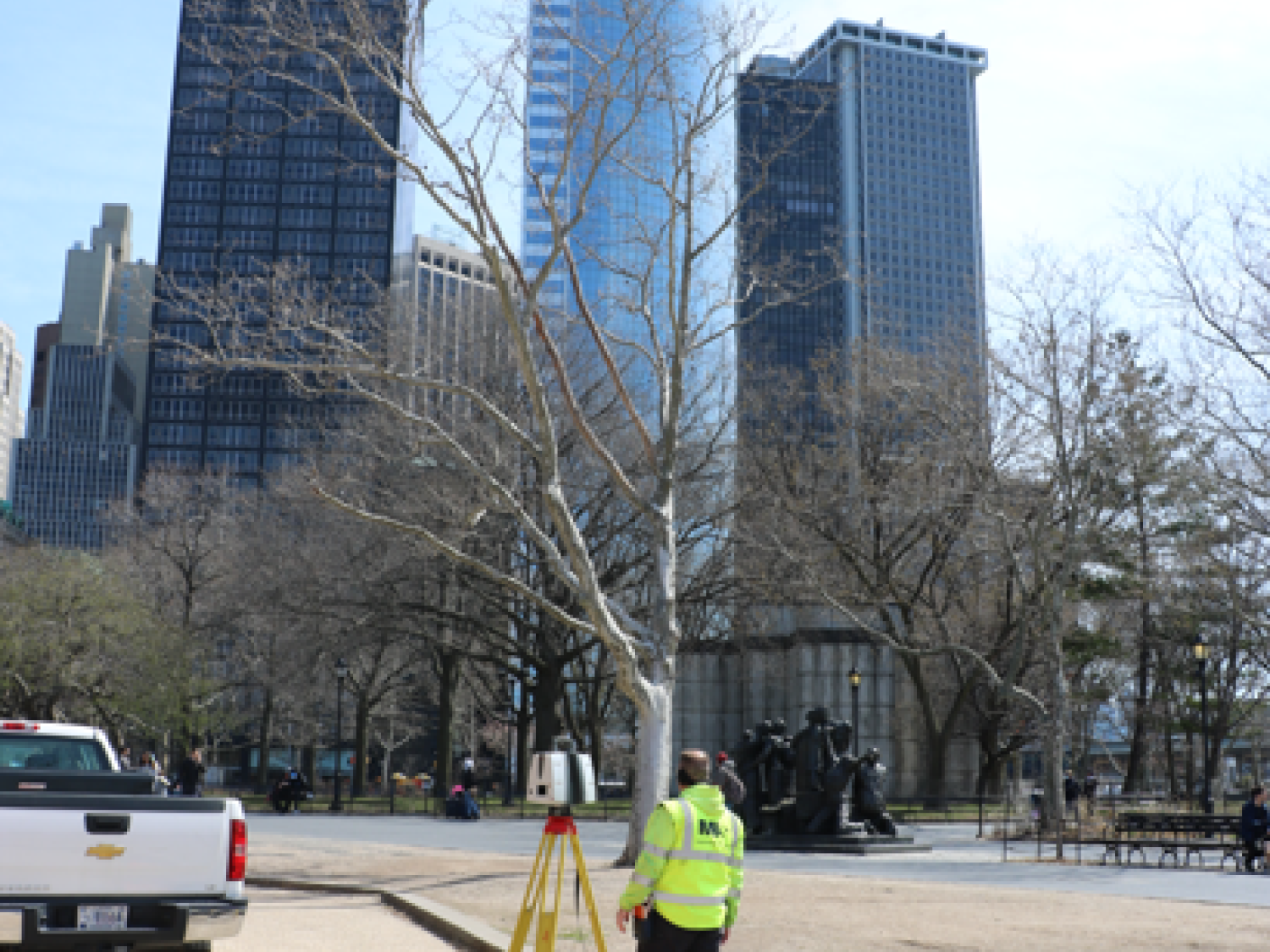

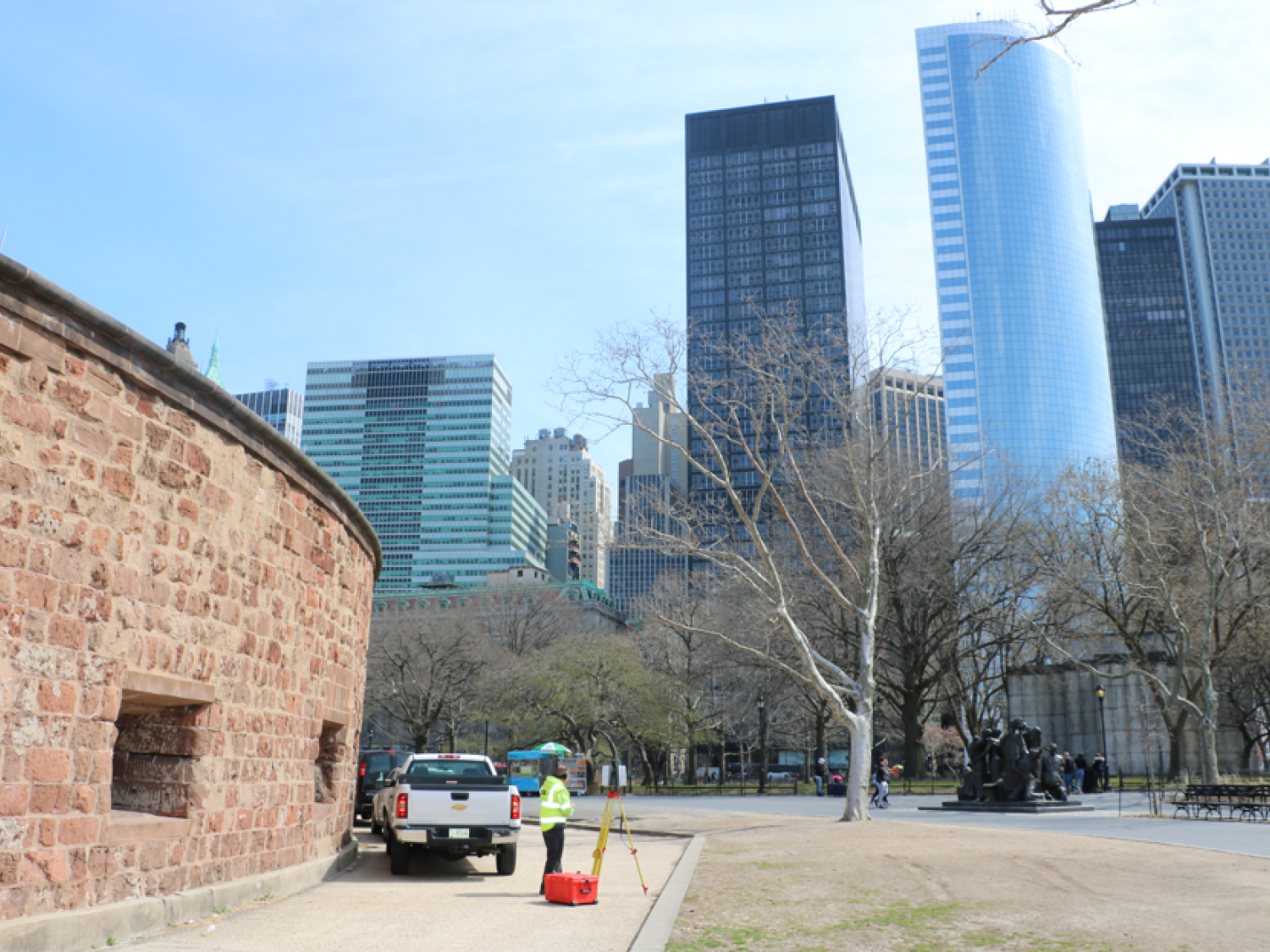

The Survey Team performed a field survey to locate physical features and obtained spot elevations at intervals of 25’ generally radial to the structure. At the two entrances MFS obtained elevations along the ramps and approaches sufficient to allow JGW to confirm grades for accessible routes. MFS additionally performed a 3D Laser scan of these areas to obtain a large elevation data set. MFS additionally located surface utilities and obtained measurements of inverts and pipe sizes for pertinent storm drains and sanitary sewers from street level. MFS obtained utility records from utility company owners known to have facilities in the area.

Stats

  • Owner:
    National Park Service
    • Client:
      John G. Waite Associates

Services Provided

  • MFS provides land surveying services throughout the tri-state area, specializing in site surveying, boundary surveys, topographical surveys, and utility surveys. One of the top surveying companies in NJ, we have extensive experience in real estate, infrastructure, utility, transportation and more.
