Manhattan Cruise Terminal Piers 88 and 90 Roof Survey

Manhattan, New York

Project Overview

MFS Consulting Engineers & Surveyor, DPC (MFS) provided professional land surveying services in support of the Manhattan Cruise Terminal Roof Surveys of Piers 88 and 90.

Manhattan, New York

Project Details

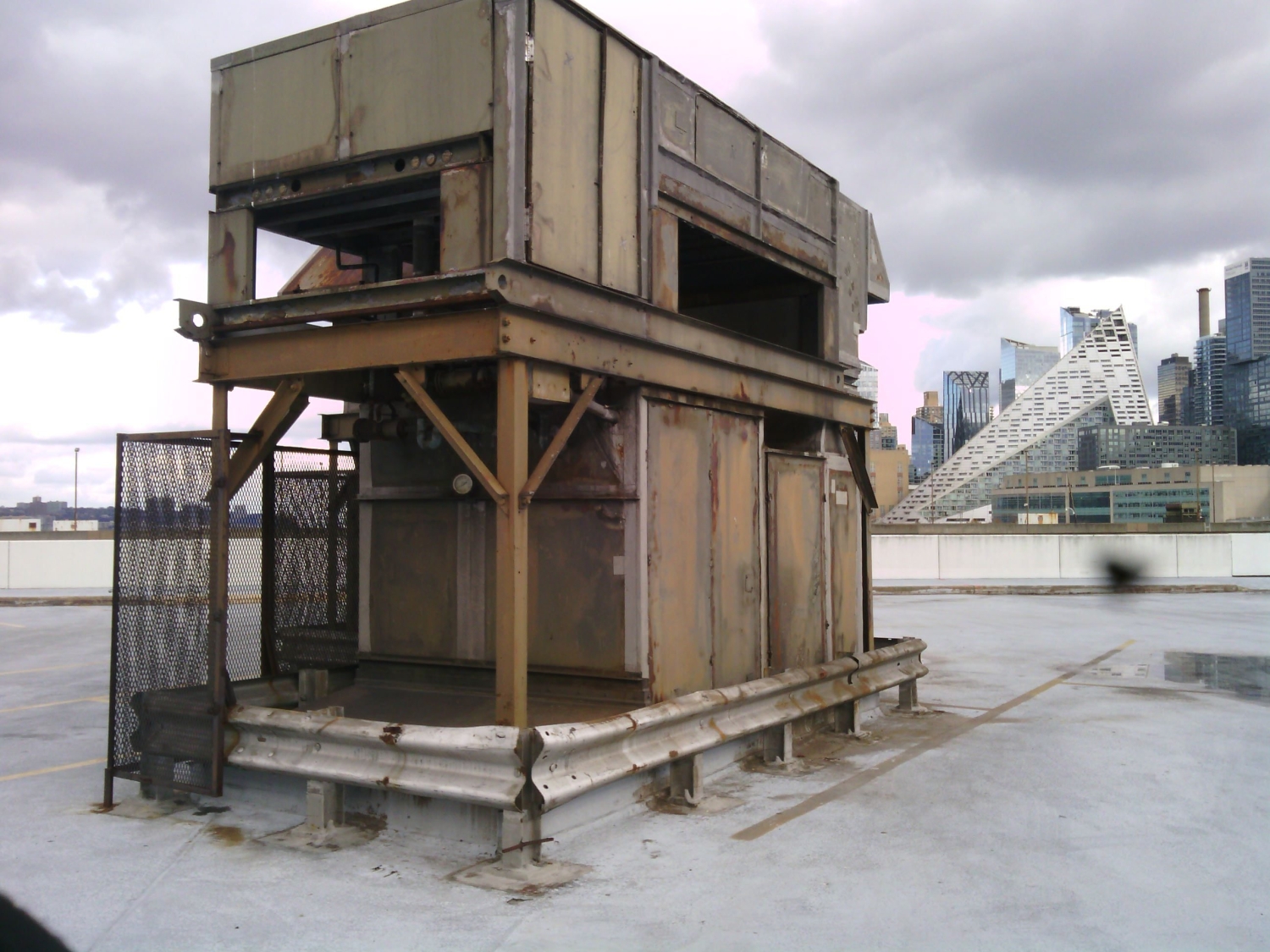

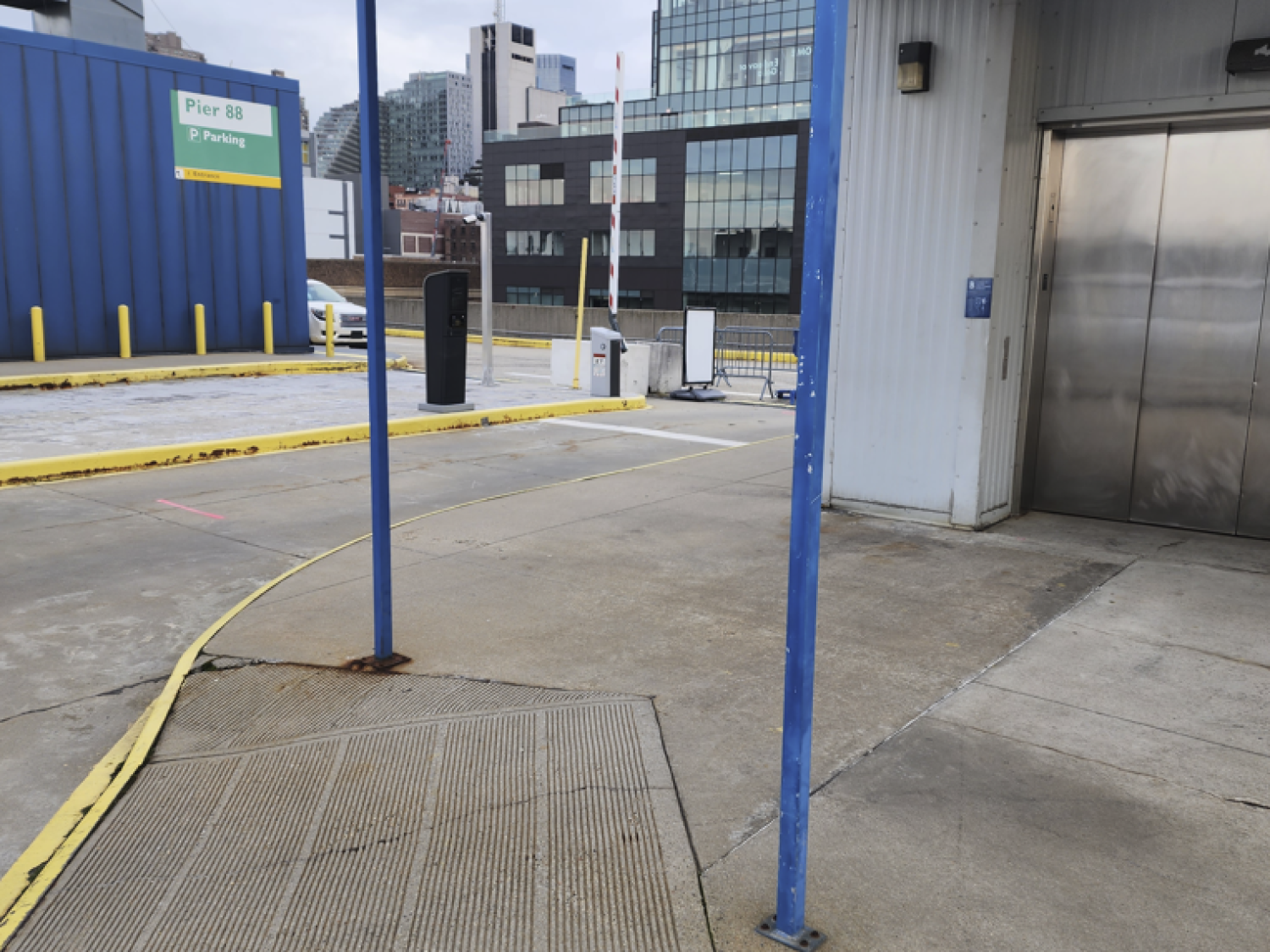

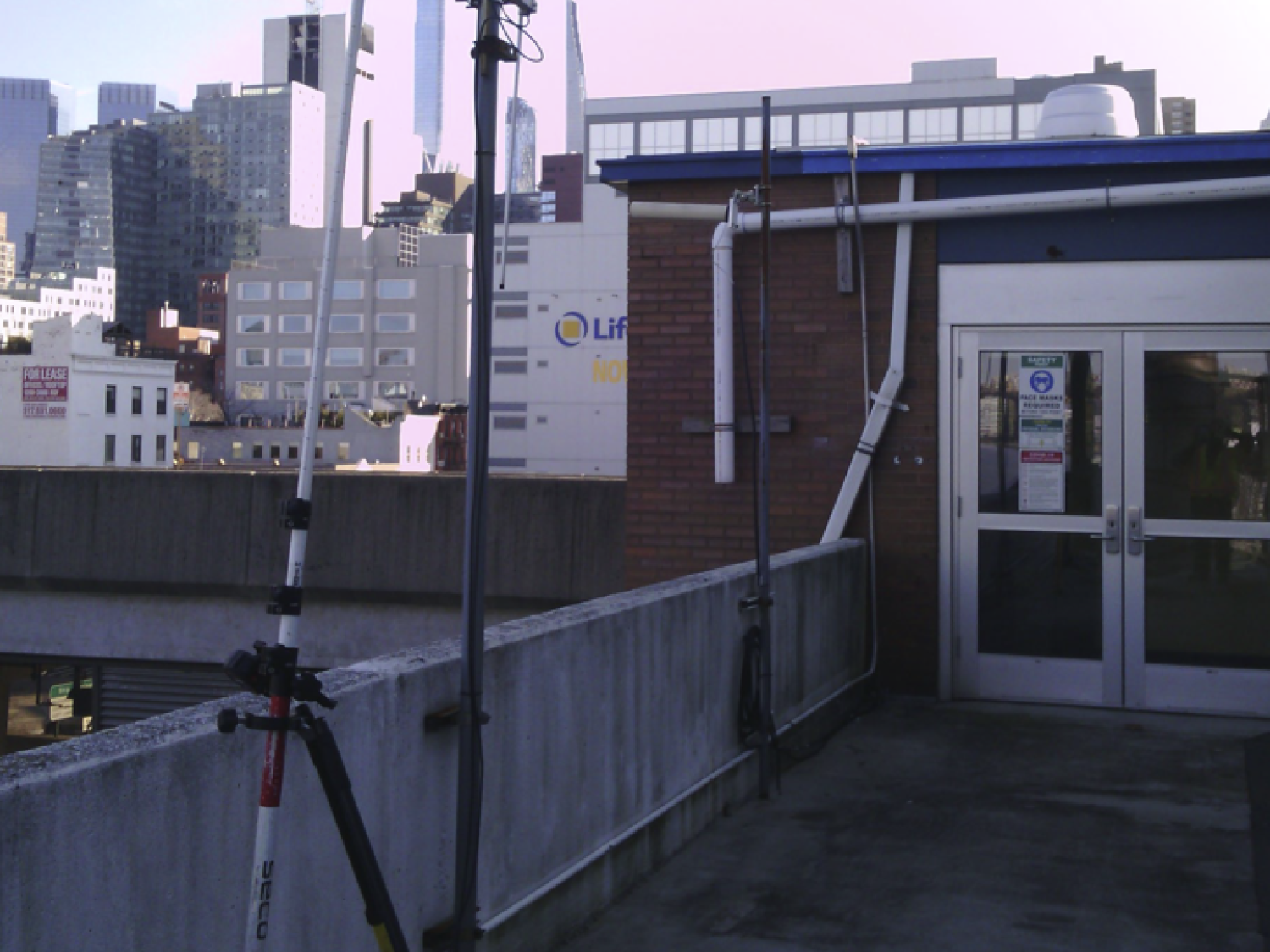

MFS performed a topographic field survey of the roofs of Piers 88 & 90 to locate the accessible above ground physical features, such as, but not limited to; buildings, curbs, expansion joints, edge of pavement, drives, striping, sidewalks, fences, parapets, walls, utility/light poles, signs, roof penetration (visible from the roof), inlets grates only, utility hardware. Cross sections of paved surfaces were surveyed at a minimum of 25’ intervals and at low/high points. Spot elevations were obtained at a spacing sufficient to develop contours at an interval of one foot. Break line features such as top/bottom of curb, edge of pavement, top/bottom of slopes/swales/banks/walls, etc. were located.

Stats

  • Owner:
    New York City Economic Development Corporation

Services Provided

  • MFS provides land surveying services throughout the tri-state area, specializing in site surveying, boundary surveys, topographical surveys, and utility surveys. One of the top surveying companies in NJ, we have extensive experience in real estate, infrastructure, utility, transportation and more.
