NJDOT 2022 SRTS Pleasantville School Transportation Safety Project

Atlantic County, New Jersey

Project Overview

MFS Engineers & Surveyors, DPC (MFS) provided land surveying services for the Preliminary Engineering and Final Design phases of the 2022 Safe Routes to School (SRTS) project for the City of Pleasantville in Atlantic County, New Jersey. The project involved three school locations: Leeds Avenue Elementary School, North Main Street Elementary School, and Washington Avenue Elementary School.

Atlantic County, New Jersey

Project Details

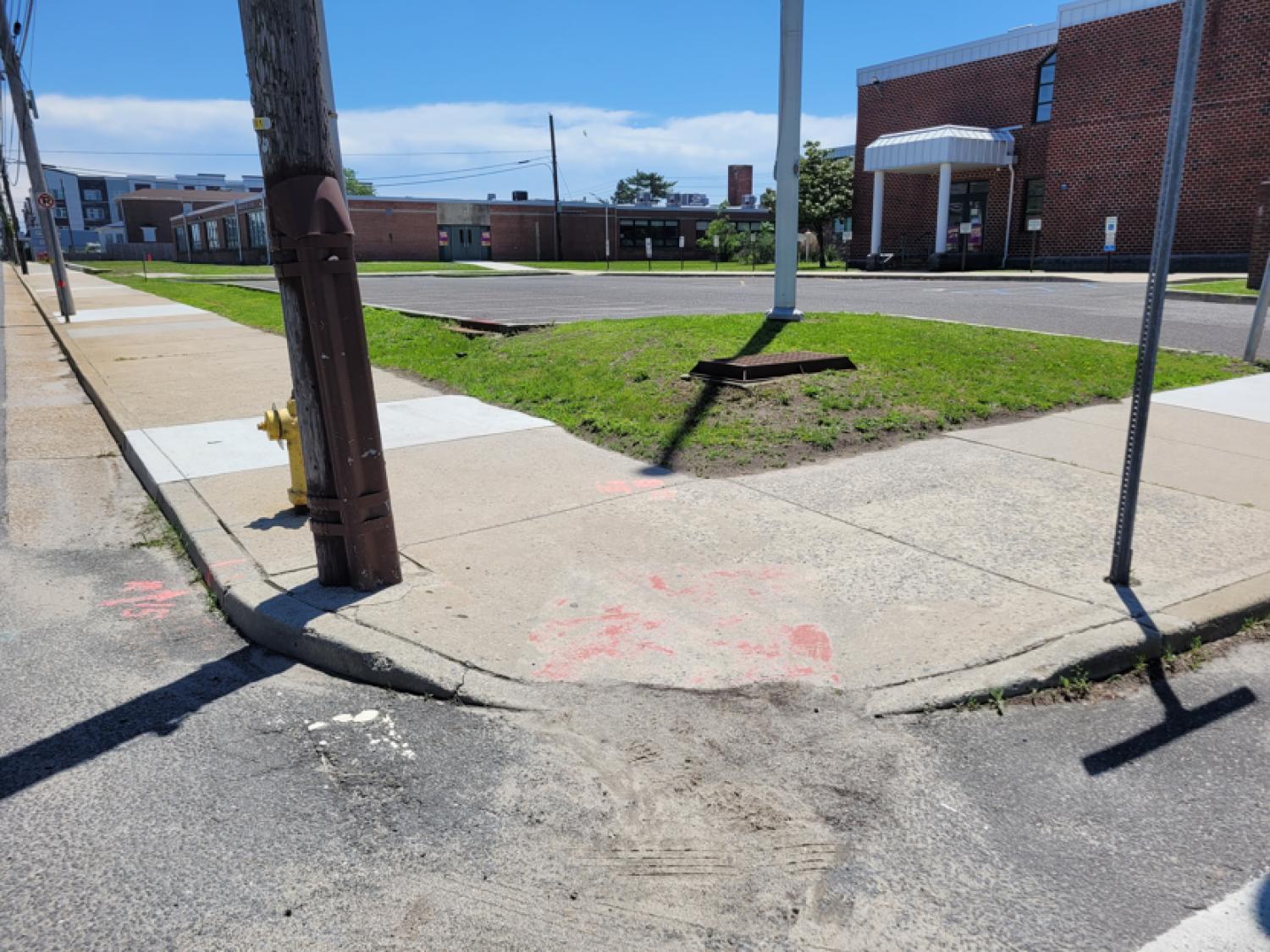

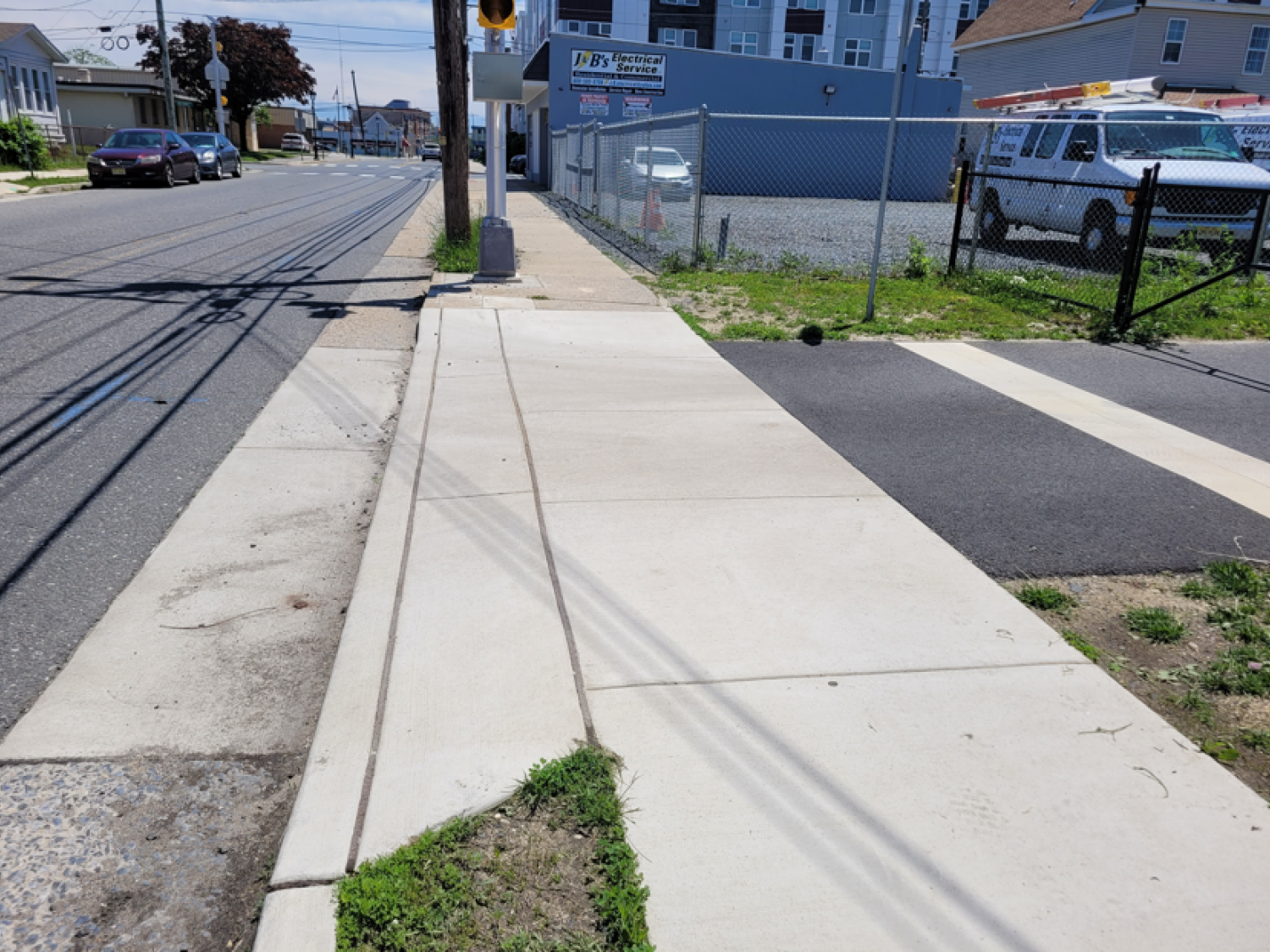

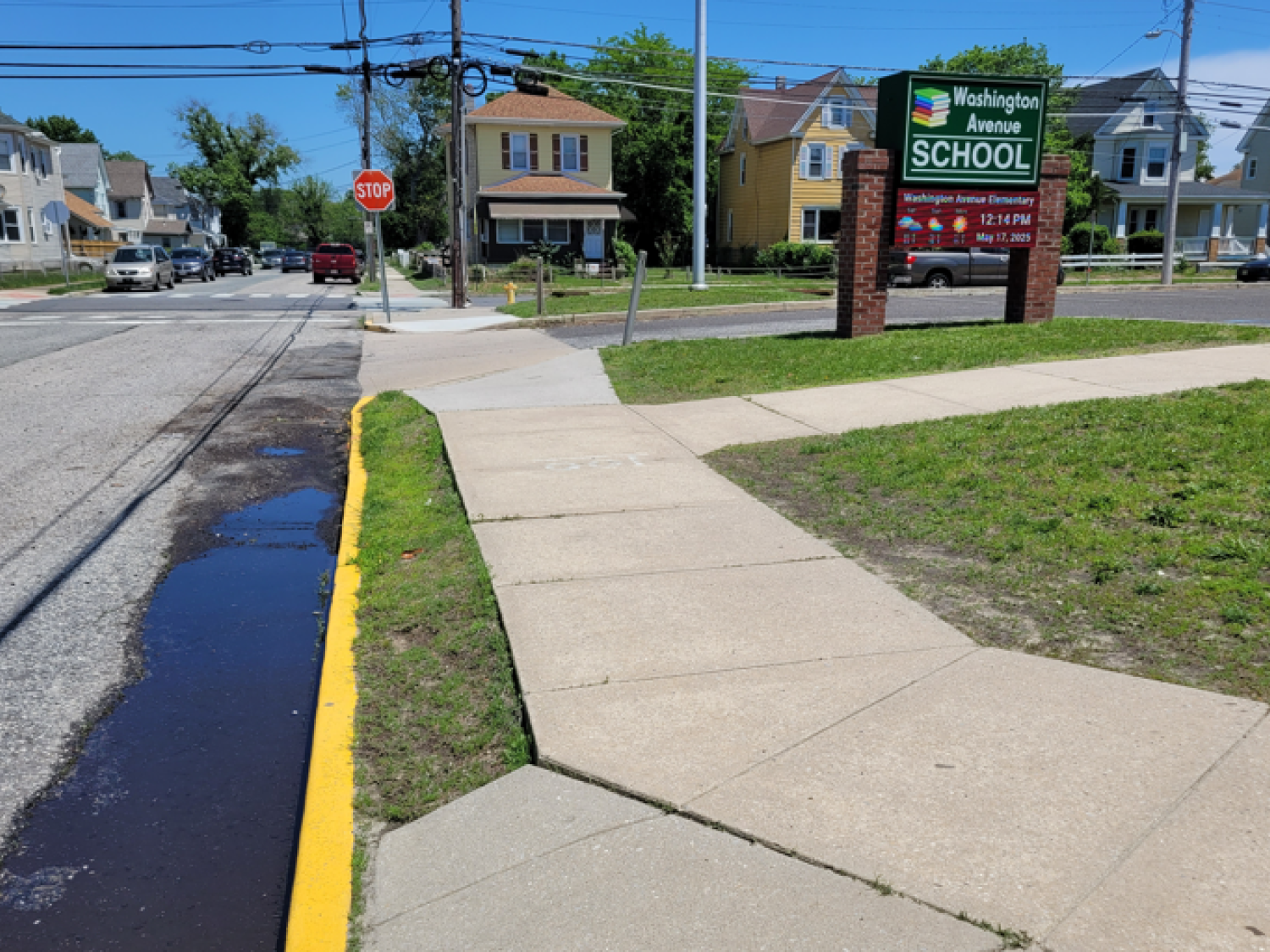

During the Preliminary Engineering Phase, the team established survey control in accordance with NJDOT Article 44 CAD Standards and tied all horizontal and vertical control to the New Jersey State Plane Coordinate System (NAD83) and NAVD88 datums. Services included preparation of a Survey Control Report, conducting a Topographic Survey at Washington Avenue Elementary School, and preparing detailed Base Maps. The topographic survey captured roadway features, utilities, drainage structures, ADA ramps, and property boundaries. Cross sections were obtained at 50-foot intervals, and right-of-way (ROW) lines were developed using tax maps, deeds, NJGIN data, and field evidence. Base maps were generated with digital terrain models (DTMs) and planimetric features, delivered in both MicroStation and AutoCAD formats to meet NJDOT Article 51 Digital Submission Standards.

The Final Design Phase involved Supplemental Surveys using the established control network to provide updated planimetric, topographic, and boundary data as required. Deliverables included updated digital mapping files, revised contours, ROW information, and terrain models in compliance with NJDOT requirements.

This project incorporated NJDOT-compliant methodologies, including Topographic Surveys, Base Line Surveys, Profile and Cross Sections for Highways, and experience with the NJ Map Filing Law for ROW Mapping. The team demonstrated proficiency in preparing ROW maps with parcel descriptions and ensured all CADD deliverables adhered to NJDOT Article 51 and 44 standards.

Stats

  • Owner:
    NJDOT
